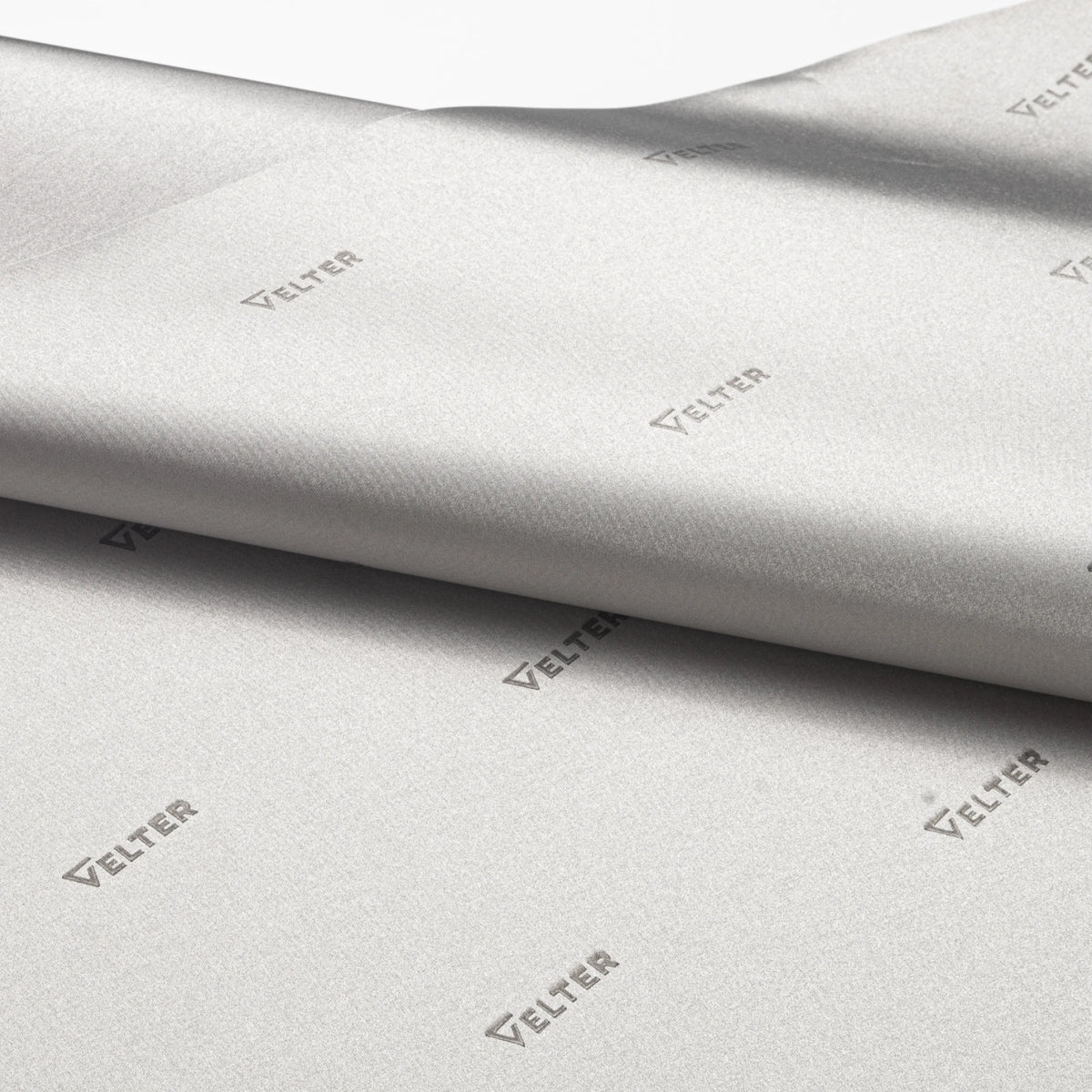

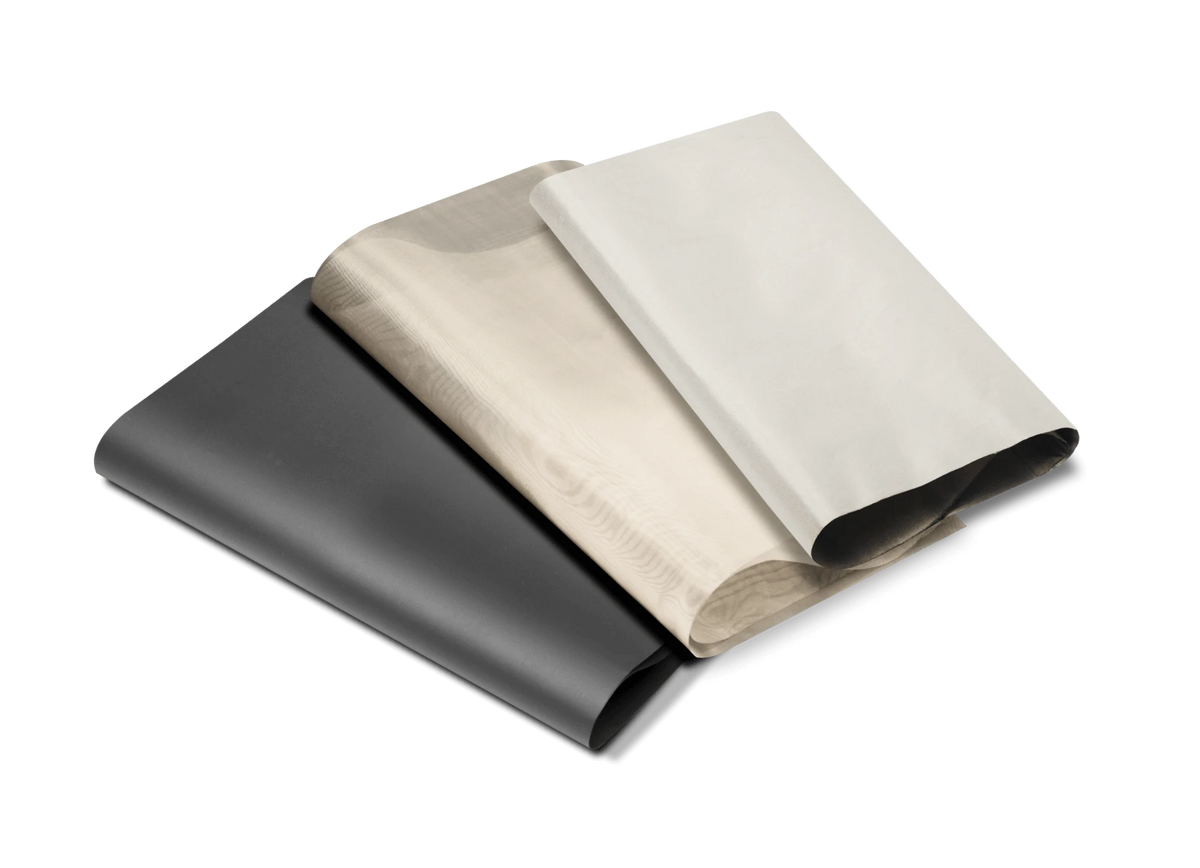

Faraday Shielding Fabric

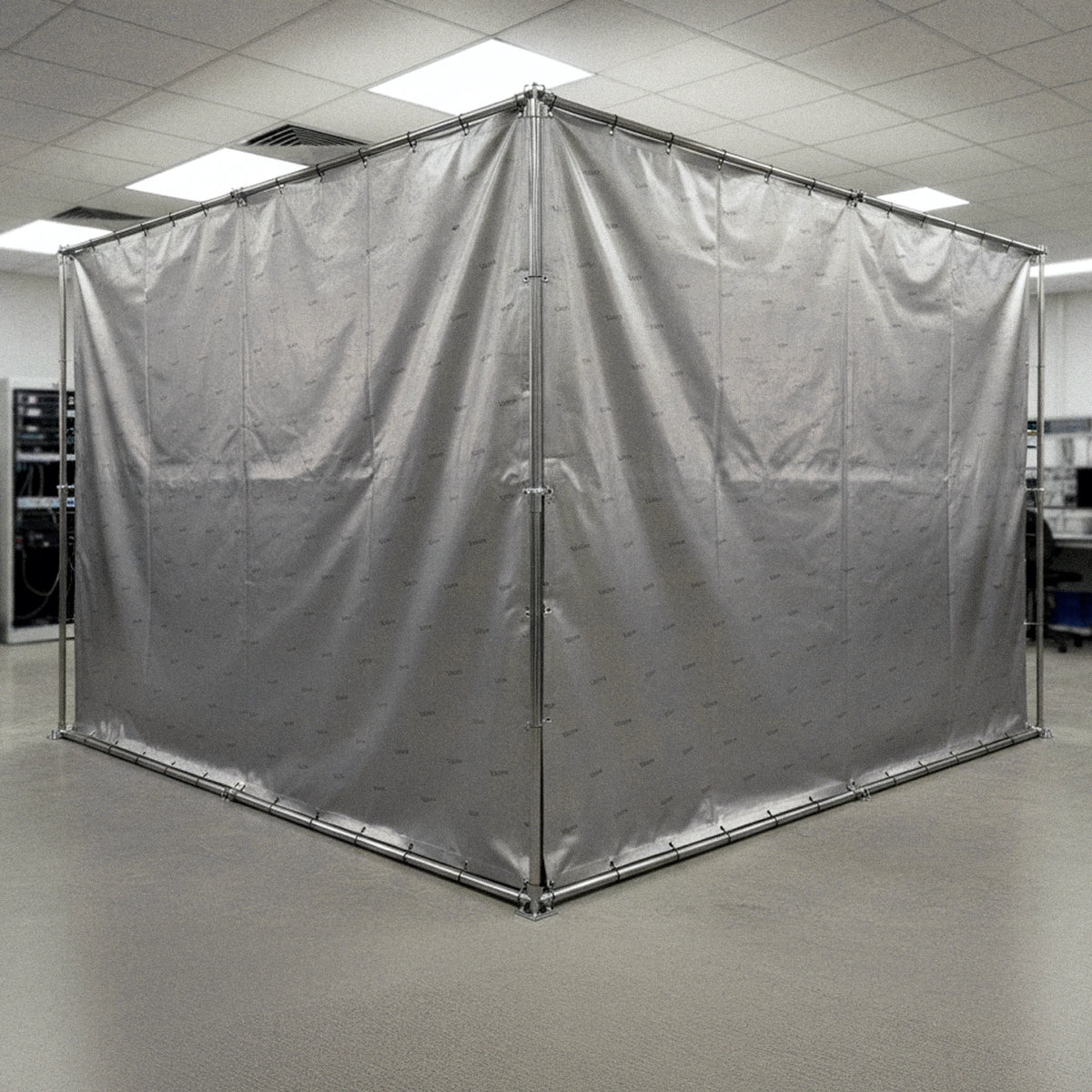

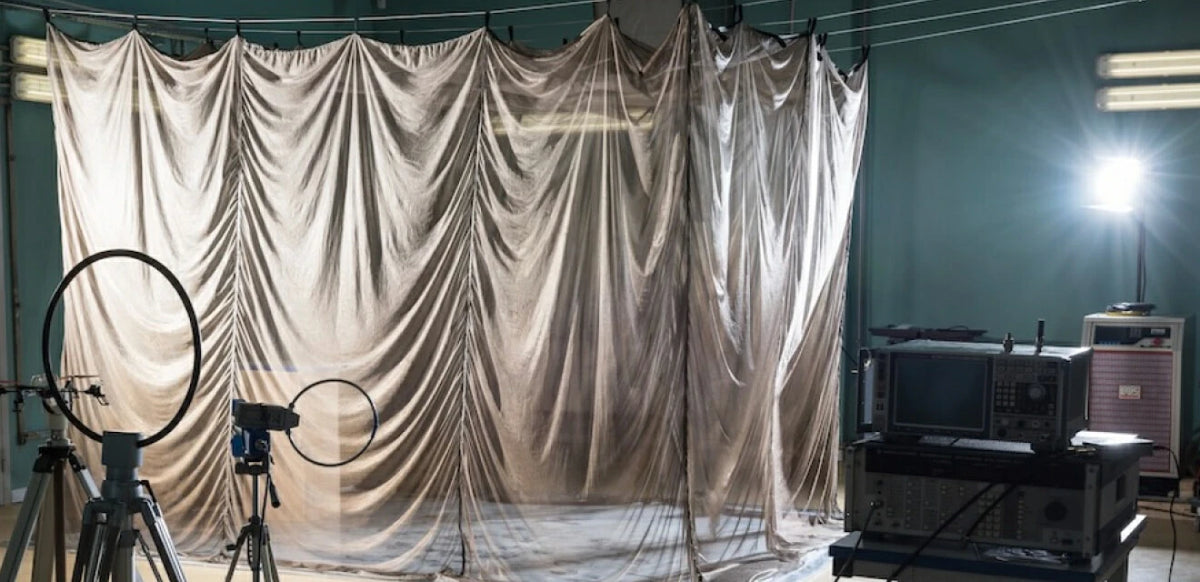

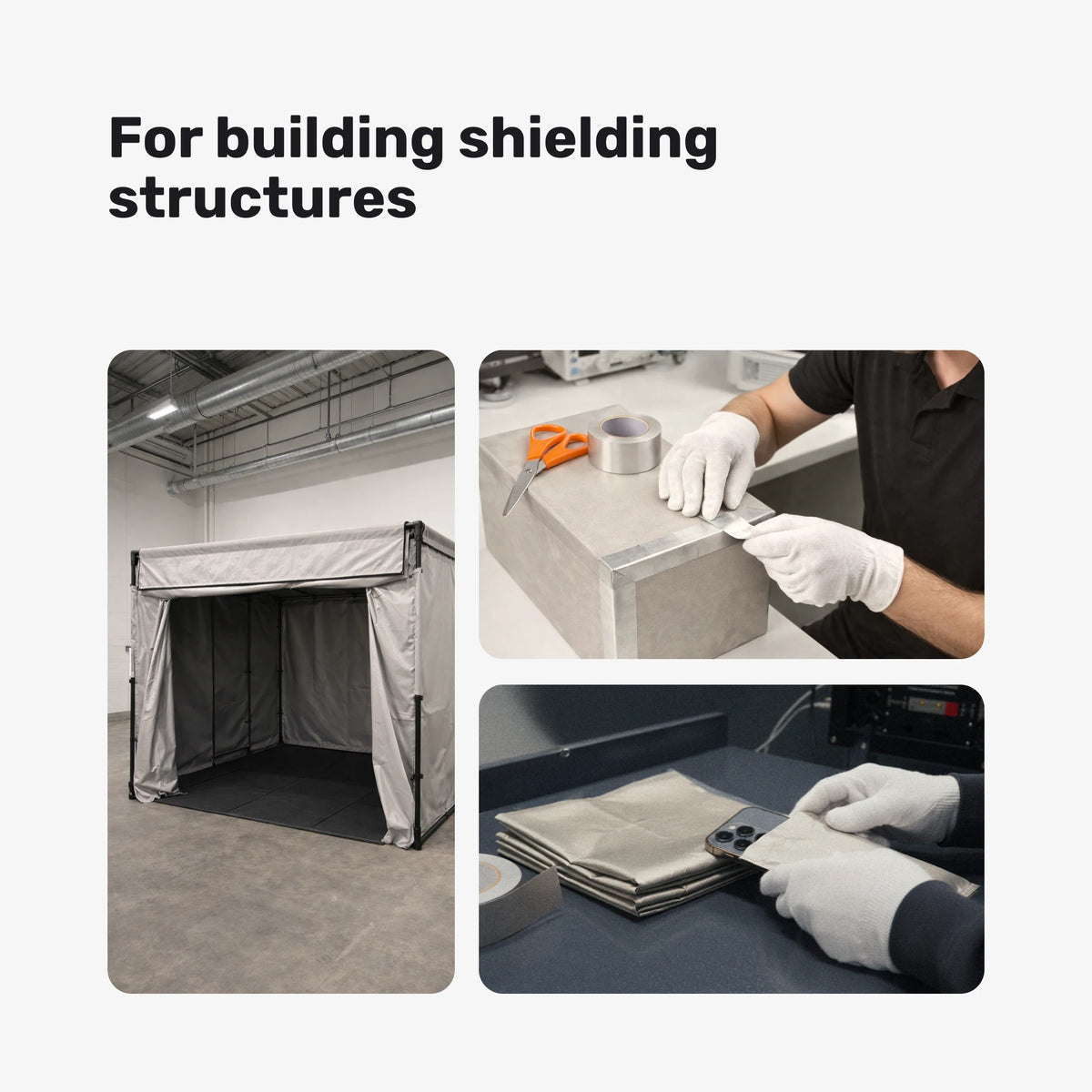

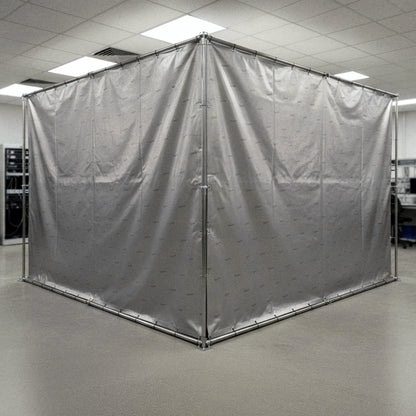

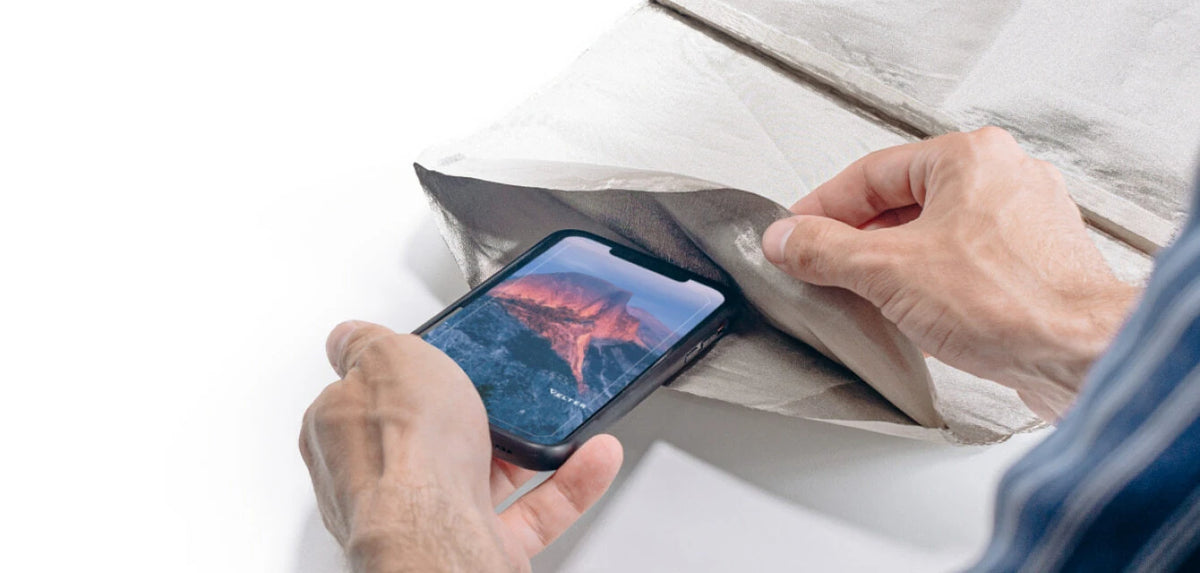

Metallized material for shielding electronic devices, electrical equipment and rooms. Used to make shielding sleeves (Faraday cages) and to protect sensitive equipment and people from electromagnetic radiation. Suitable for shielded tents, used in construction to shield rooms, in electromagnetic compatibility and immunity testing, and for technical information security.

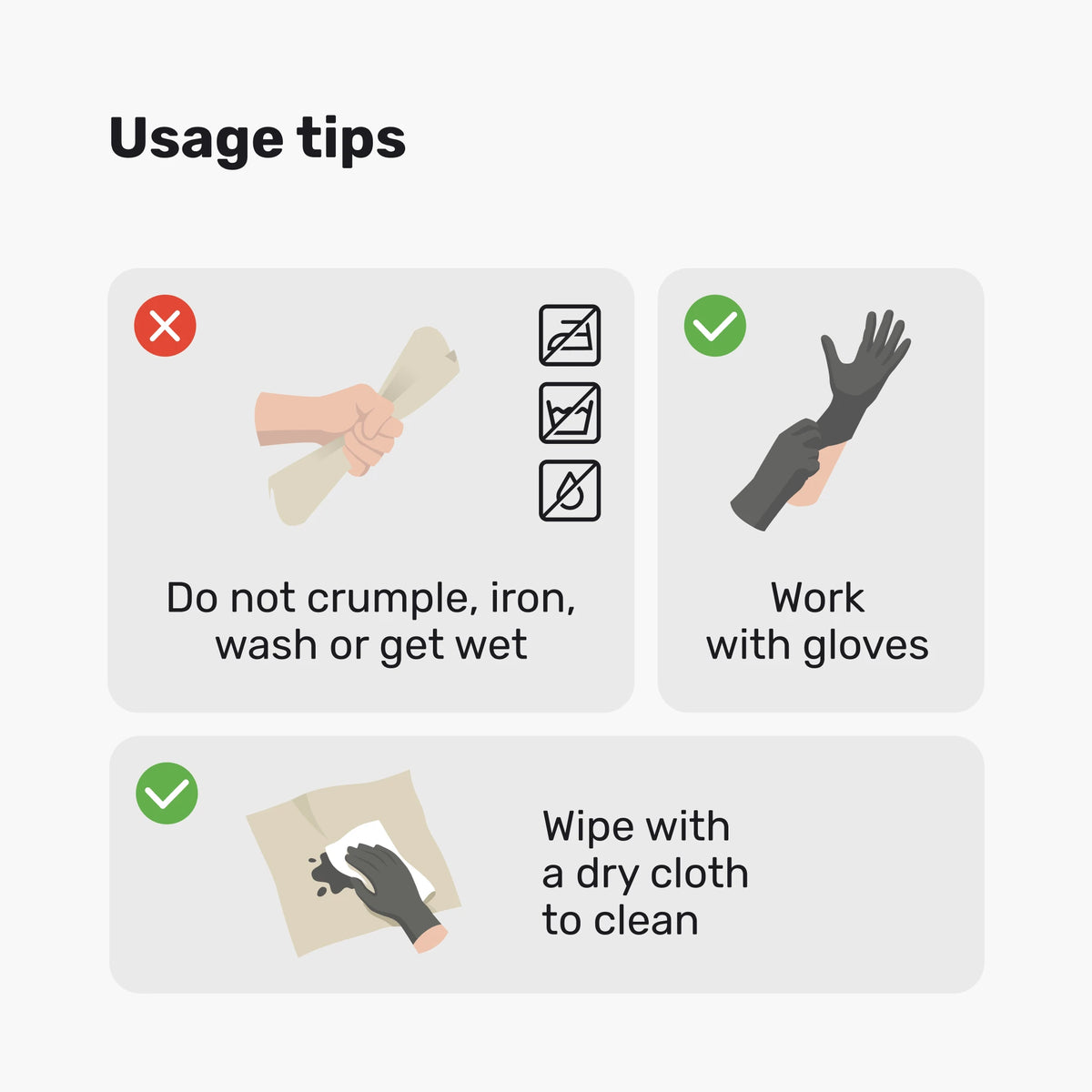

For maximum shielding effectiveness, handle the fabric with gloves.

Complete your protection with Velter Apps

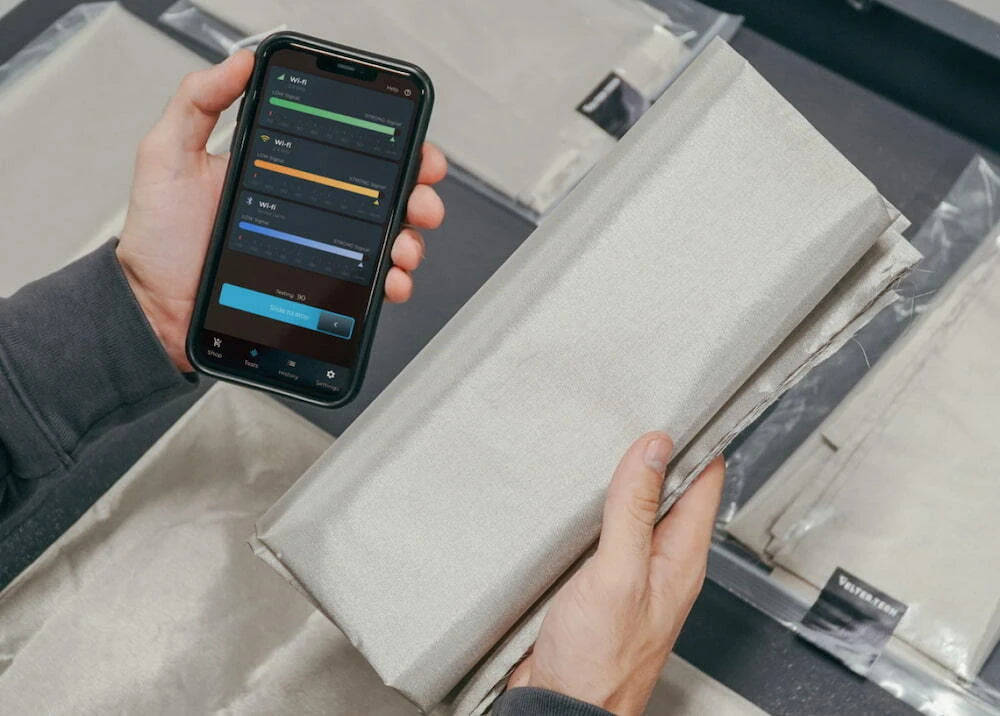

Shielding Tester – check how well the shielding works.
White Shield – a white noise generator app.

• Blocks all radio signals on wireless frequencies (GSM / 3G / 4G / LTE / 5G / Wi-Fi / Bluetooth / GPS / GLONASS)
• Suitable for thermal imaging protection
• Available lengths: 1, 2, 5, 10, 50, 100, 300 and 500 m. Longer lengths on request

Color: silver
Width: 1.1 m
Density: 230T–260T
Thickness: 0.08 mm

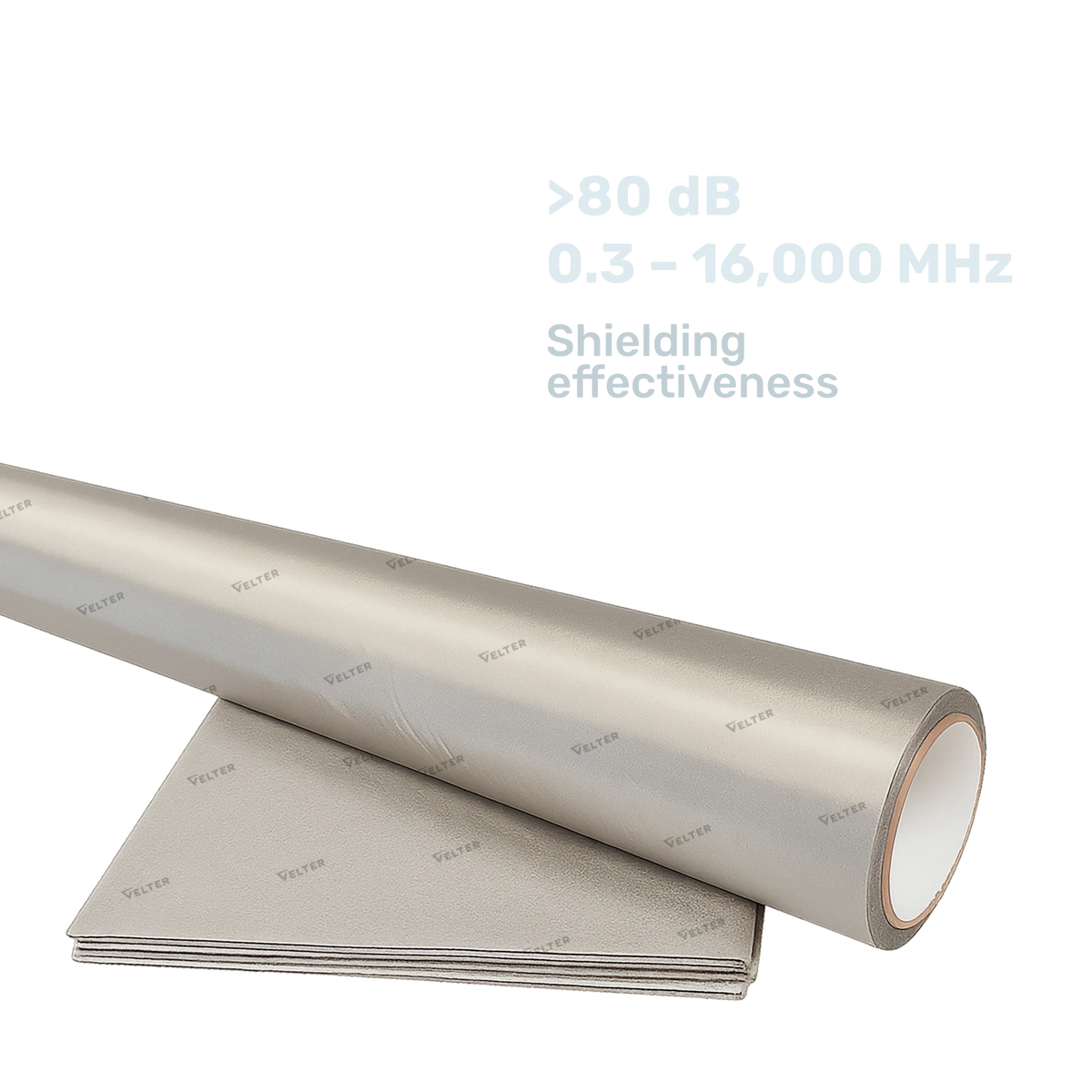

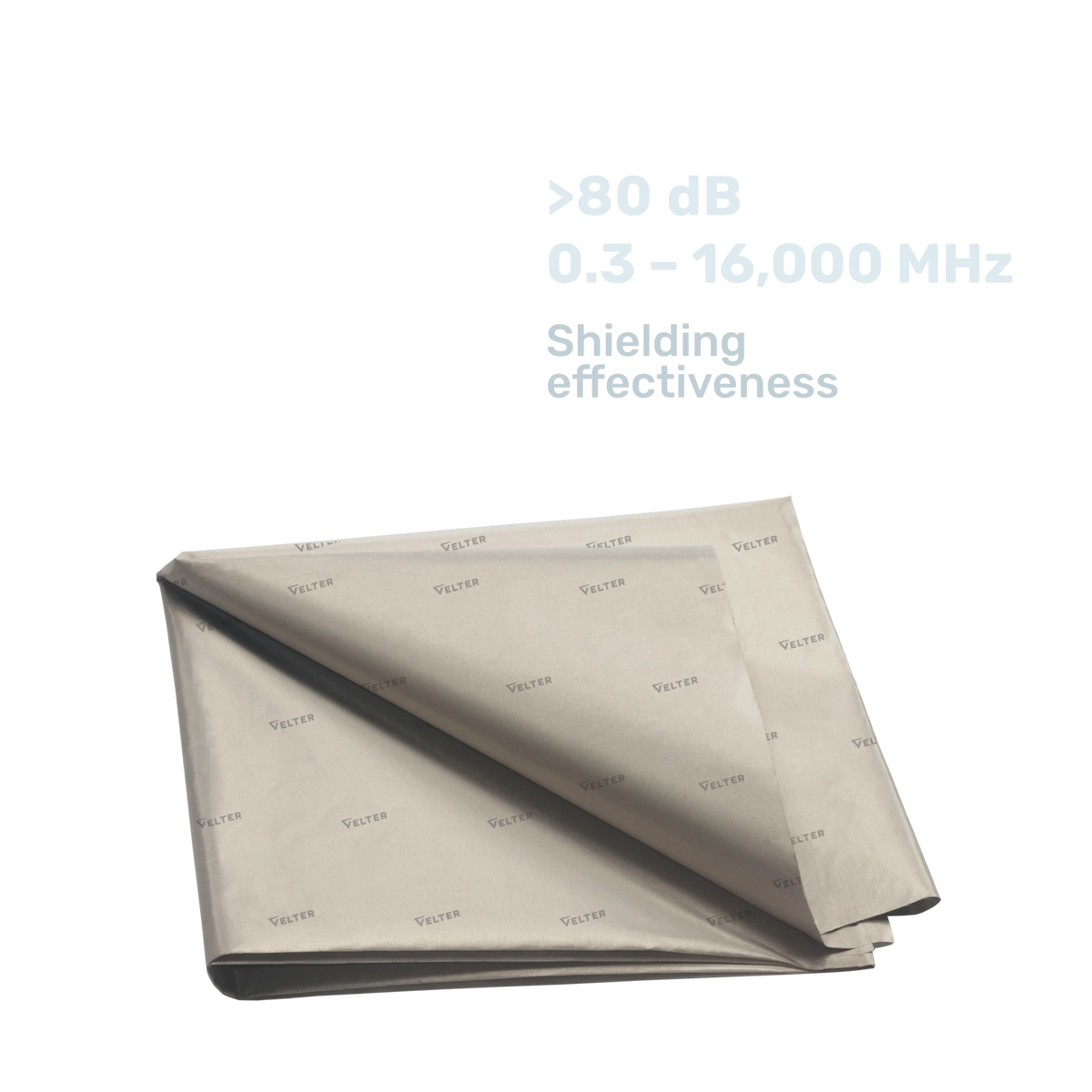

Shielding effectiveness: at least 80 dB at 0.3–16,000 MHz

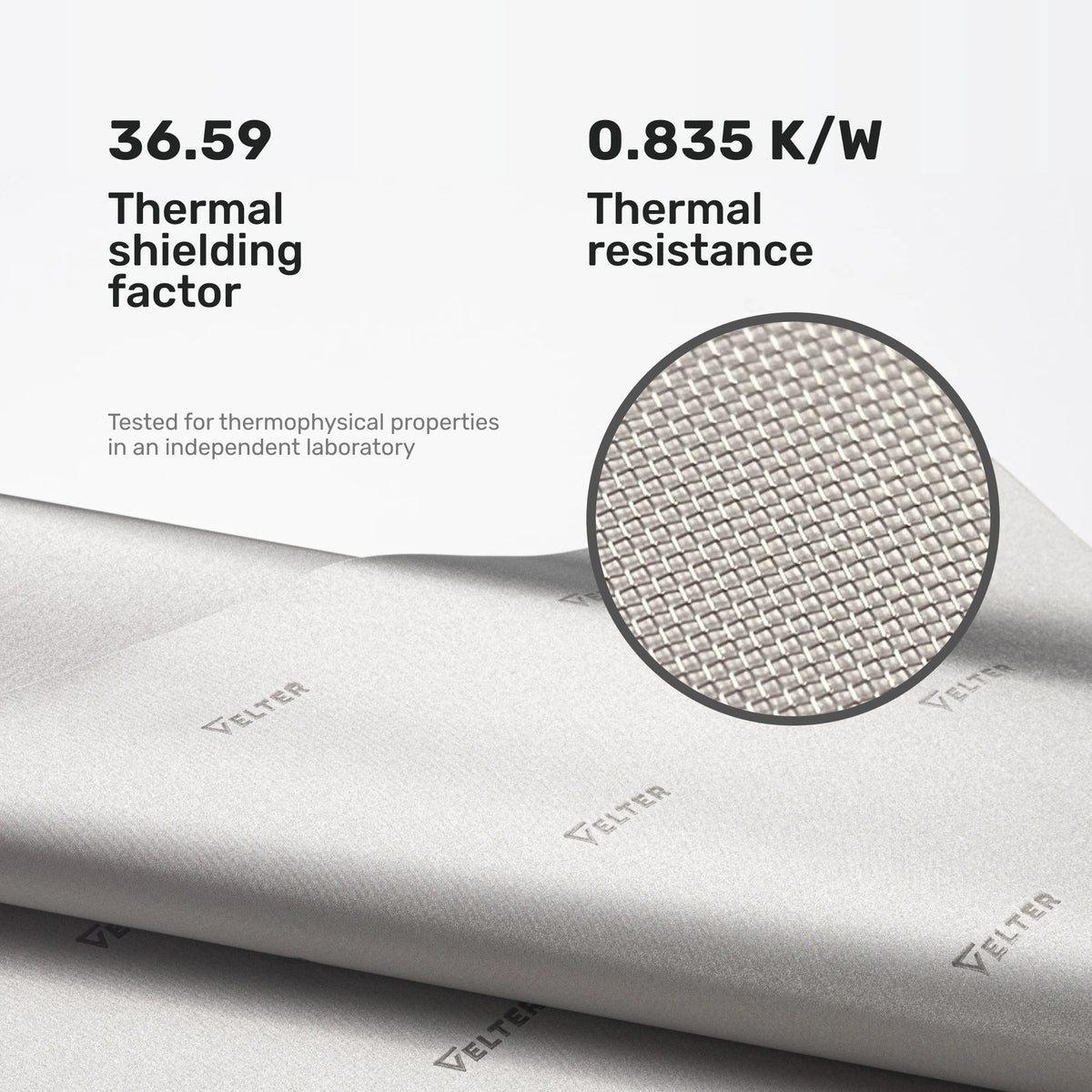

Thermal shielding factor: 36.59×
Thermal resistance: 0.835 K/W
Composition: 56% polyester, 35% copper, 9% nickel

Shielding by frequency

0.3 MHz – 82 dB
433 MHz – 89 dB
900 MHz – 91 dB
2.4 GHz – 92 dB
5 GHz – 90 dB
16 GHz – 80 dB
